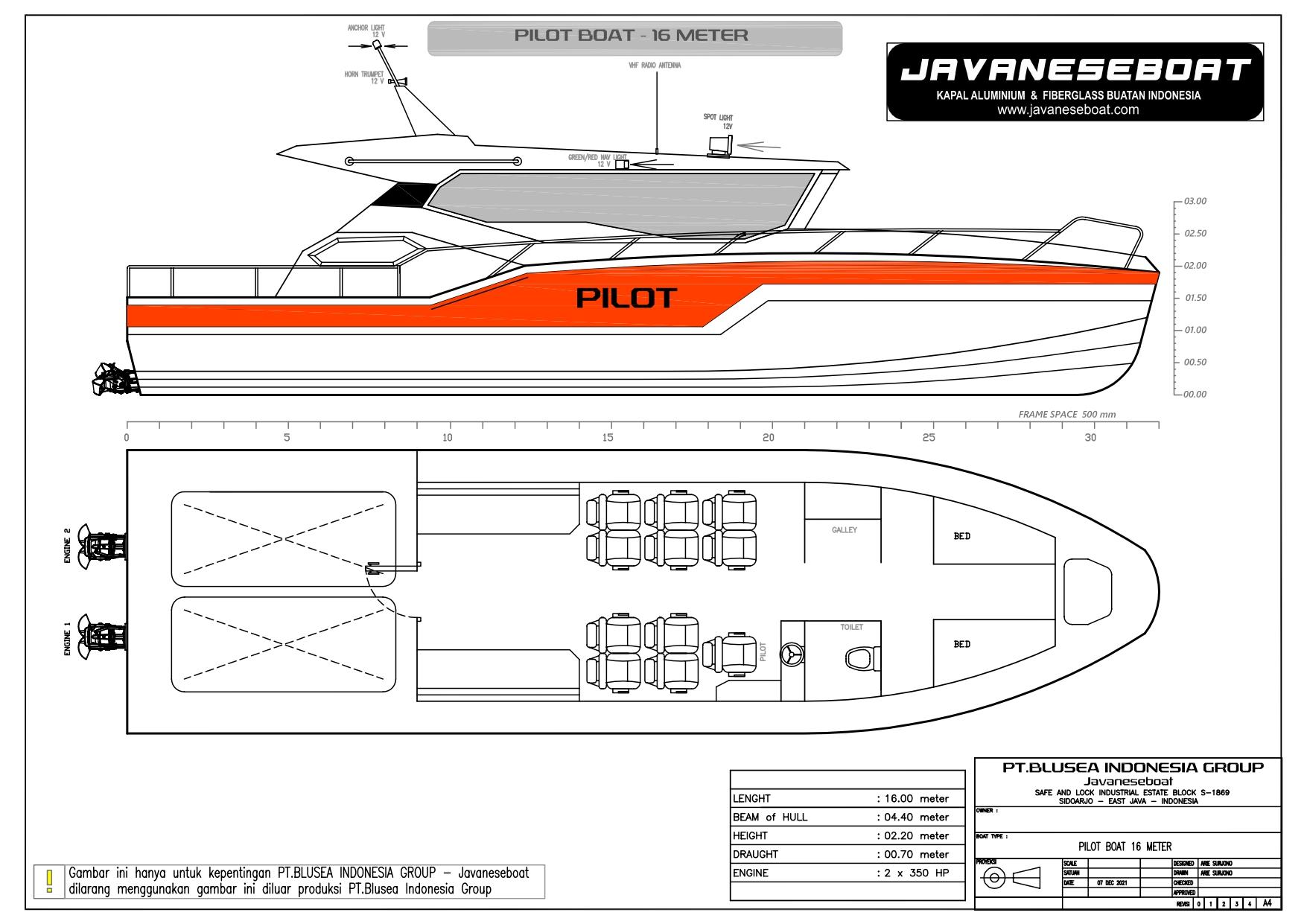

PILOT BOAT 16 METER
PILOT BOAT 16 METER
KAPAL PANDU 16 METER
PEMESANAN HUB : WA : 081 33333 7303
OPSI MATERIAL
- Aluminium
- Fiberglass
| UKURAN UTAMA – PILOT BOAT 16 METER | ||
| LENGTH over ALL | 16.00 Meter | |
| BEAM over ALL | 04,40 Meter | |
| HULL HEIGHT | 02,20 Meter | |
| DRAUGHT | 00.70 Meter | |
| ENGINE | 2 x INBOARD VOLVO 380 | |
| SPEED | 14 Knot | |
| MATERIAL PILOT BOAT FIBERGLASS | ||
| Polyesther Resin Marine Grade – Yukalac 153 BQTN / SHCP 268 BQTN | ||
| Bottom – 15 Layer Kombinasi Mat.300+Mat450+WR600 | ||
| Side – 13 Layer Kombinasi Mat.300+Mat450+WR600 | ||
| Deck – 7 Layer Kombinasi Mat.300+Mat450+WR600 | ||
| Frame terbuat dari Profile Fiberglass | ||
| MATERIAL PILOT BOAT ALUMINIUM | ||
| Bottom Plate – 6 mm – Aluminium Marine 5083 H116 | ||
| Side Plate – 6 mm – Aluminium Marine 5083 H116 | ||
| Deck Plate – 4 mm – Aluminium Marine 5083 H116 | ||
| Cabin Plate – 4 mm – Aluminium Marine 5083 H116 | ||
| A | PERLENGKAPAN DECK | ||
| 1 | Bow Railing ss.304 dia 1.25″ | 1 | Set |
| 2 | Railing Belakang ss.304 dia 1.25″ | 1 | Set |
| 3 | Tiang Bendera | 1 | Set |
| 4 | Hand Graib Belakang ss.304 1″ | 1 | Set |
| A | PERLENGKAPAN DECK | ||
| 1 | Bow Railing ss.304 dia 1.25″ | 1 | Set |
| 2 | Railing Belakang ss.304 dia 1.25″ | 1 | Set |
| 3 | Tiang Bendera | 1 | Set |
| 4 | Hand Graib Belakang ss.304 1″ | 1 | Set |
| B | PERLENGKAPAN TAMBAT & LABUH | ||
| 1 | Cleat Pengikat Tali Jangkar dia 3″ | 1 | Set |
| 2 | Cleat Pengikat Tali Ukuran 3″ | 4 | Set |
| 3 | Anchor Roller [Pengarah Tali jangkar ] | 1 | Set |
| 4 | Jangkar 15 Kg | 1 | Set |
| C | INTERIOR | ||
| 1 | Kursi pilot | 1 | Set |
| 2 | Kursi Penumpang Recleaning | 10 | Set |
| 3 | Sofa | 2 | Set |
| 4 | Toilet | 1 | Set |
| 5 | Bed | 2 | Set |
| 6 | Jendela Samping Model Sliding | 2 | Set |
| 7 | Jendela Depan | 1 | Set |
| 8 | Galley | 1 | Set |
| 9 | Tangga Akses Ke Atas | 1 | Set |
| 10 | Marine Wiper | 1 | Bh |
| 11 | Locker | 2 | Bh |
| 12 | AC SPLIT 1 PK | 1 | Bh |
| D | SYSTEM PIPA DAN POMPA | ||
| 1 | Sistem Pengisian dan Distribusi BBm | 1 | Set |
| 2 | Sistem Pengisian dan Distribusi Air | 1 | Set |
| 3 | Bilge Pump 2000 GPH | 4 | Set |
| 4 | Sistem Pipa Toilet | 1 | Set |
| E | LAMPU NAVIGASI DAN PENERANGAN | ||
| 1 | Lampu Cabin 12V | 1 | Set |
| 2 | Lampu Navigasi Merah Hijau 12 V | 1 | Set |
| 3 | Lampu Jangkar 12 V | 1 | Set |
| 4 | Lampu Navigasi Putih 12 V | 1 | Set |
| 5 | Lampu Sorot 12 V 55 Watt | 1 | Set |
| F | KELISTRIKAN | ||
| 1 | Battere Switch | 2 | Set |
| 2 | Panel Switch 6 Gang | 2 | Set |
| 3 | Battere 12 V 100 AH | 2 | Set |
| 4 | Battere 12 V 200 AH | 1 | Set |
| 5 | Genset Open 10 KVA | 1 | Set |
| G | ALAT KOMUNIKASI & NAVIGASI | ||
| 1 | GPS GARMIN ECHOMAP 65CV | 1 | Set |
| 2 | VHF Radio 16 Channel | 1 | Set |
| 3 | Public Addressor TOA | 1 | Set |
| 4 | Lampu Rotary | 1 | Set |
| 5 | |||
| H | TANK | ||
| 1 | Tanki BBM Cap.3000 Ltr Alu tebal = 3mm | 1 | Set |
| 2 | Tangki Air Fiber 200 Ltr | 1 | Set |
| I | STEERING SYSTEM [ SISTEM KEMUDI ] | ||
| 1 | Hydraulic Steering System | 1 | Set |
| J | ALAT KESELAMATAN [SAFETY & APPARATUS] | ||
| 1 | Life Jacket | 12 | Pcs |
| 2 | Ring Buoy | 2 | Pcs |
| 3 | Alat Pemadam [fire extinghuiser] 2.5 kg | 2 | Set |
| 4 | Alat Pemadam [fire extinghuiser] 5 kg | 2 | Set |
Lama Pembuatan : 7 Bulan – Start Saat Uang Muka diterima.
Skema Pembayaran :
| Term 1 / DP | 20 | % | Start Saat Kontrak di TTD. |
| Term 2 | 20 | % | Hull lepas cetak [Fiber] / Part hull siap rakit [Alu] |
| Term 3 | 20 | % | Cabin Joint |
| Term 4 | 20 | % | Start Install Equipment |
| Term 5 – Final | 20 | % | Before Delivery |
Warranty Body : 1 thn – setelah Pembayaran Terakhir diterima.
Meliputi : Bodi , System kelistrikan dan interior diluar mesin dan alat Nav [ ada warranty produsen masing- masing]. Diluar kesalahan operasional / Humman Error.
