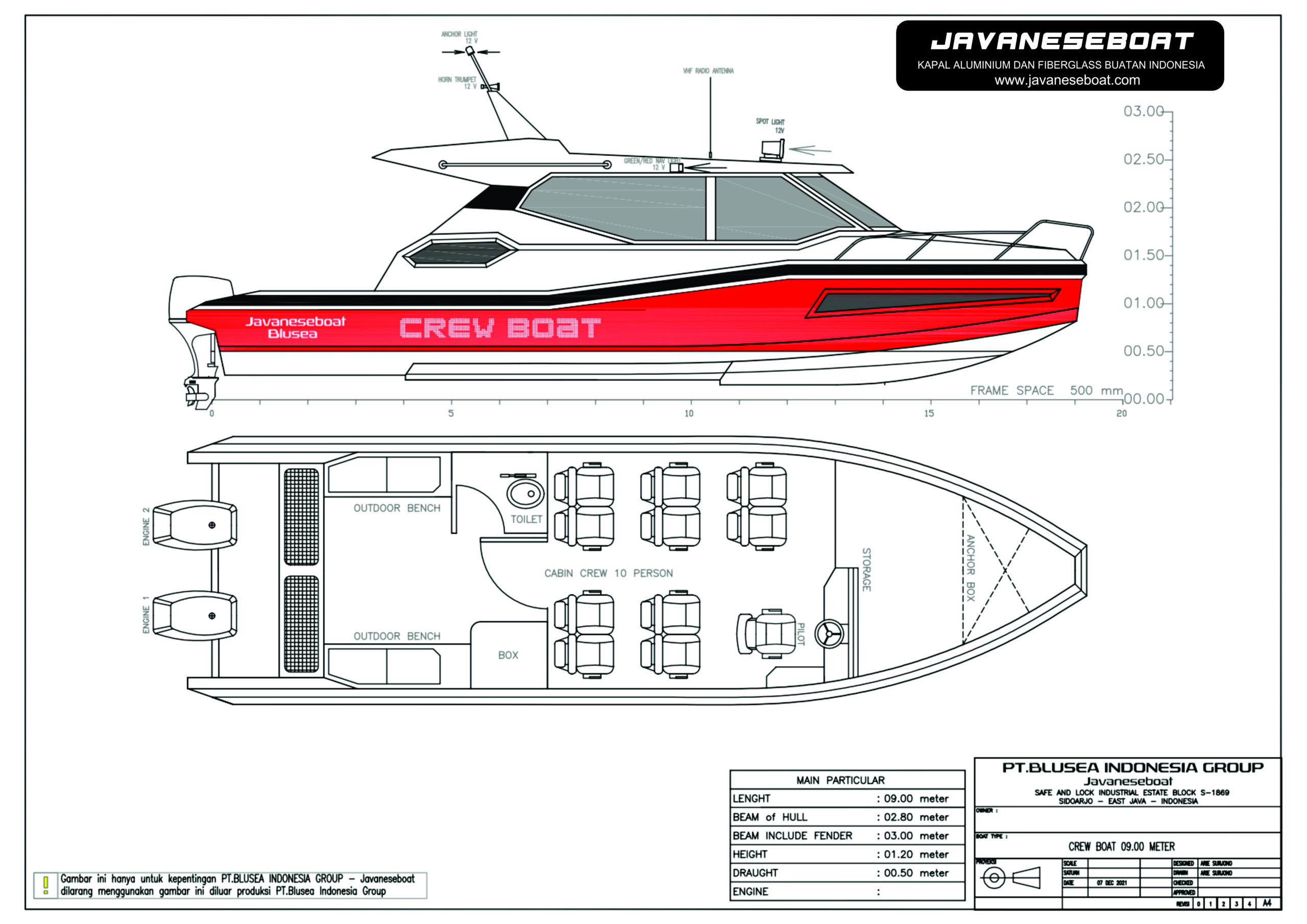

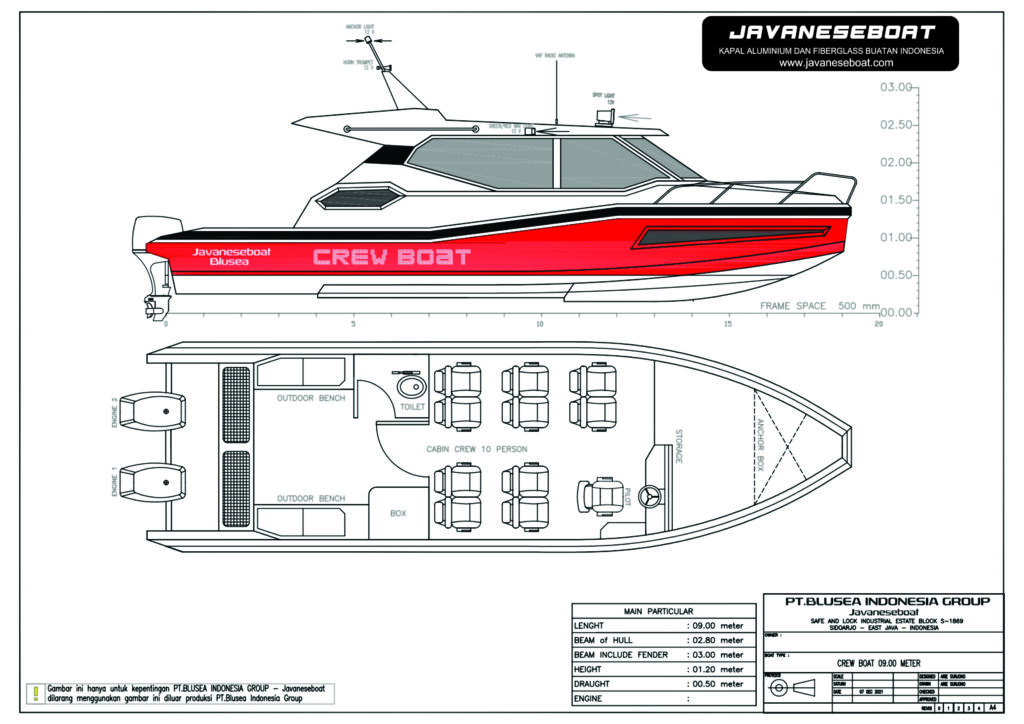

KAPAL PATROLI / KAPAL CREWBOAT 9 METER
| UKURAN UTAMA |
| PANJANG [Length] | : | 9.00 | meter |
| LEBAR [Beam] | : | 2.80 | meter |
| TINGGI LAMBUNG [Height] | : | 1.20 | meter |
| SARAT [Draught] | : | 0.40 | meter |
| MESIN [Engine] | : | 2 x 100 HP YAMAHA 4 TAK |
| TAHUN [Years] | : | 2025 |
| MATERIAL |
| 1 | Bottom – 8 Lapis |
| 2 | Samping – 7 Lapis |
| 3 | Deck – 5 Lapis |
| | Material Polyesther Resin Marine Grade |
| A | PERLENGKAPAN DECK |
| 1 | Bow Railing ss.304 dia 1″ | 1 | Set |
| 2 | Hand Graib Samping ss.304 dia 1″ | 1 | Bh |
| 3 | Tiang Bendera | 1 | Bh |
| 4 | Hatch Lubang Jangkar | 1 | Bh |
| |
| B | PERLENGKAPAN TAMBAT & LABUH |
| 1 | Cleat Pengikat Tali Jangkar | 1 | Bh |
| 2 | Cleat Pengikat Tali Tambat | 4 | Bh |
| 3 | Dampra F2 | 1 | Bh |
| 4 | Jangkar 10 Kg | 1 | Bh |
| 5 | Tali Tambat & Tali Jangkar 14 mm | 1 | Roll |
| |
| C | INTERIOR & EXTERIOR |
| 1 | Kursi pilot | 1 | Bh |
| 2 | Kursi Penumpang Recleaning | 10 | Bh |
| 3 | Bangku Hadap Samping | 2 | Bh |
| 4 | Kaca Depan Tempered 5 mm | 1 | Set |
| 5 | Kaca Samping Sliding samping | 2 | Set |
| 6 | Plafon | 1 | Lot |
| 7 | Pintu Ruangan | 1 | Bh |
| 8 | Dashboard | 1 | Bh |
| D | SYSTEM PIPA DAN POMPA |
| 1 | Sistem Pengisian dan Distribusi BBm | 1 | Set |
| 2 | Sistem Pompa Bilga | 1 | Set |
| 3 | | | |
| |
| E | LAMPU NAVIGASI DAN PENERANGAN |
| 1 | Lampu Cabin | 3 | Set |
| 2 | Lampu Belakang | 1 | Set |
| 3 | Lampu Sorot Depan | 1 | Bh |
| 4 | Lampu Navigasi Merah Hijau Putih | 1 | Set |
| 5 | Lampu Jangkar | 1 | Bh |
| |
| F | KELISTRIKAN |
| 1 | Wiring System | 1 | Lot |
| 2 | Switch Panel | 2 | Bh |
| 3 | Battere Switch | 1 | Bh |
| 4 | Horn Trumpet | 1 | Bh |
| 5 | Battere / Accu 70 Amp | 2 | Bh |
| |
| G | ALAT KOMUNIKASI & NAVIGASI |
| 1 | GPS GARMIN 62 SV | 1 | Set |
| 2 | Radio VHF ICOM + Antenna | 1 | Set |
| 3 | | | |
| H | TANK |
| 1 | Tanki BBM Cap.200 Ltr | 1 | Set |
| 2 | Tangki Air 100 Liter | 1 | Set |
| |
| I | STEERING SYSTEM [ SISTEM KEMUDI ] |
| 1 | Hydraulic Steering System | 1 | Set |
| 2 | T Bar | 1 | Bh |
| |
| J | ALAT KESELAMATAN [SAFETY & APPARATUS] |
| 1 | Life Jacket | 12 | Bh |
| 2 | Ring Buoy | 1 | Bh |
| 3 | Tabung Pemadam 2.5 Kg | 1 | Bh |
| 4 | Red Hand Flare | 2 | Bh |
| 5 | Smoke Signal | 2 | Bh |
OPTIONAL : TOILET
HARGA [ PRICE ]
| HARGA BODY BOAT + AKSESORIS [ POINT I ] + MESIN 2 x 100 HP 4 SUZUKI |
| HARGA : RP. |
| HARGA BODY BOAT + AKSESORIS [ POINT I ] + MESIN 2 x 150 HP 4 TAK SUZUKI |
| HARGA : RP. |
| TERM & CONDITION | | TERM OF PAYMENT |
| 1 | Harga Validasi 30 hari | 1 | 30% | DP |
| 2 | Harga Diluar Pajak | 2 | 30% | Hull Lepas Cetak |
| 3 | Harga tidak termasuk bea kirim | 3 | 30% | Start Install Accessories ( Kaca , Pintu , dll) |
| 4 | | 4 | 10% | Before Delivery |
| 5 | | 5 | | |
| BUILDING TIME : 4-5 Bulan [ Months ] |
| WARRANTY : 6 MONTHS – Max 5% dari Harga Body |
