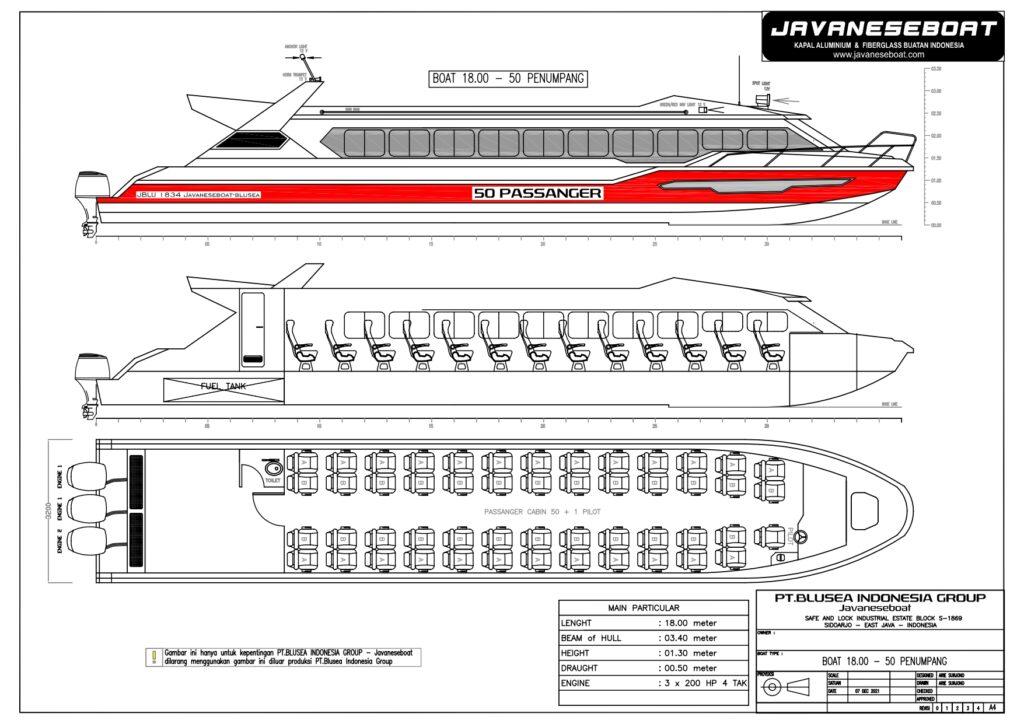

KAPAL PENUMPANG 50 ORANG – 18 METER
PASSENGER BOAT 50 PERSON
INFO HARGA HUBUNGI : WA 081 33333 7303
Email : Javaneseboat @gmail.com
| UKURAN UTAMA |
| PANJANG [Length] | : | 18.00 | meter |
| LEBAR INCl Fender [Beam] | : | 03.40 | meter |
| TINGGI LAMBUNG [Height] | : | 01.30 | meter |
| SARAT [Draught] | : | 00.50 | meter |
| MESIN [Engine] | : | 3 x 200 HP SUZUKI |
| TAHUN [Years] | : | 2025 |
| MATERIAL LAMBUNG VERSI FIBERGLASS |
| 1 | Bottom – 14 Lapis |
| 2 | Samping – 12 Lapis |
| 3 | Deck – 5 Lapis |
| | Material Polyesther Resin Marine Grade |
| MATERIAL LAMBUNG VERSI ALUMINIUM |
| 1 | Bottom – 6 mm Aluminium Marine 5053 H116 |
| 2 | Samping – 6 mm Aluminium Marine 5083 H116 |
| 3 | Deck – 4 mm Aluminium Marine 5083 H116 |
| 4 | Cabin – 4 mm Aluminium Marine 5083 H116 |
| A | PERLENGKAPAN DECK |
| 1 | Bow Railing ss.304 dia 1,25″ | 1 | Set |
| 2 | Hand graib ss.304 dia 1″ | 2 | Bh |
| 3 | Tiang Bendera | 1 | Bh |
| 4 | Hatch Lubang Jangkar | 1 | Bh |
| B | PERLENGKAPAN TAMBAT & LABUH |
| 1 | Cleat Pengikat Tali Jangkar | 1 | Bh |
| 2 | Cleat Pengikat Tali Tambat | 4 | Bh |
| 3 | Dampra F2 | 4 | Bh |
| 4 | Jangkar 15 Kg | 1 | Bh |
| 5 | Tali Tambat & Tali Jangkar 14 mm | 1 | Roll |
| C | INTERIOR & EXTERIOR |
| 1 | Kursi pilot | 1 | Bh |
| 2 | Kursi Penumpang Recleaning | 50 | Bh |
| 3 | Kaca Depan Tempered 5 mm | 1 | Set |
| 4 | Kaca Samping Sliding samping | 2 | Set |
| 5 | Plafon | 1 | Lot |
| 6 | Pintu Ruangan | 1 | Bh |
| 7 | Dashboard | 1 | Bh |
| 8 | Toilet | 1 | Bh |
| 9 | AC 1 PK | 2 | Bh |
| D | SYSTEM PIPA DAN POMPA |
| 1 | Sistem Pengisian dan Distribusi BBm | 1 | Set |
| 2 | Sistem Pompa Bilga | 1 | Set |
| 3 | Sistem Pengisian dan Distribusi Air | 1 | Set |
| 4 | Sistem Pompa Air Tawar | 1 | Set |
| E | LAMPU NAVIGASI DAN PENERANGAN |
| 1 | Lampu Cabin | 8 | Set |
| 2 | Lampu Belakang | 1 | Set |
| 3 | Lampu Sorot Depan | 1 | Bh |
| 4 | Lampu Navigasi Merah Hijau Putih | 1 | Set |
| 5 | Lampu Jangkar | 1 | Bh |
| F | KELISTRIKAN |
| 1 | Wiring System | 1 | Lot |
| 2 | Switch Panel | 2 | Bh |
| 3 | Battere Switch | 1 | Bh |
| 4 | Horn Trumpet | 1 | Bh |
| 5 | Battere / Accu 70 Amp | 3 | Bh |
| 6 | Genset Open 8000 Watt | 1 | Bh |
| G | ALAT KOMUNIKASI & NAVIGASI |
| 1 | GPS GARMIN 62CV | 1 | Set |
| 2 | Radio VHF ICOM + Antenna | 1 | Set |
| H | TANK |
| 1 | Tanki BBM Cap.2500 Ltr | 1 | Set |
| 2 | Tangki Air Fiber 150 Liter | 1 | Bh |
| I | STEERING SYSTEM [ SISTEM KEMUDI ] |
| 1 | Hydraulic Steering System | 1 | Set |
| 2 | T Bar | 2 | Bh |
| J | ALAT KESELAMATAN [SAFETY & APPARATUS] |
| 1 | Life Jacket | 55 | Bh |
| 2 | Ring Buoy | 2 | Bh |
| 3 | Tabung Pemadam 2.5 Kg | 2 | Bh |
| 4 | Tabung Pemadam 5 kg | 2 | Bh |
| 5 | Red Hand Flare | 2 | Bh |
| 6 | Smoke Signal | 2 | Bh |
| TERM & CONDITION | | TERM OF PAYMENT |
| 1 | Harga Validasi 30 hari | 1 | 30% | DP |
| 2 | Harga Diluar Pajak | 2 | 30% | Hull Lepas Cetak [Fiber]/Part Siap Rakit [Alu hull] |
| 3 | Harga tidak termasuk bea kirim | 3 | 30% | Start Install Accessories ( Kaca , Pintu , dll) |
| 4 | | 4 | 10% | Before Delivery |
| 5 | | 5 | | |
| BUILDING TIME : 7 Bulan [ Months ] |
| WARRANTY : 6 MONTHS – Max 5% dari Harga Body |
