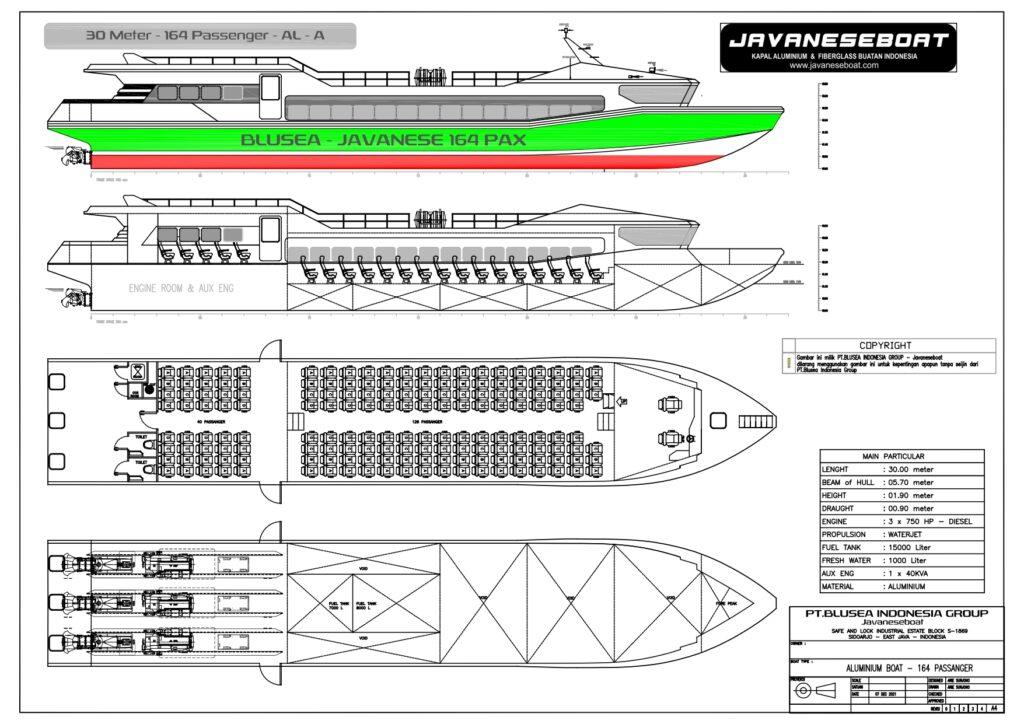

KAPAL PENUMPANG ALUMINIUM 164 ORANG
FASTBOAT ALUMINIUM 164 PASSENGER
CONTACT – JAVANESEBOAT – WA : 081-33333-7303 – Email : Javaneseboat@gmail.com
KAPAL PENUMPANG KAPASITAS 164 ORANG SERI BLU 3057 – 164
| UKURAN UTAMA |
| PANJANG [Length] | : | 30.00 | meter |
| LEBAR [Beam] | : | 05.70 | meter |
| TINGGI LAMBUNG [Height] | : | 01.90 | meter |
| SARAT [Draught] | : | 00.90 | meter |
| MESIN [Engine] | : | 3 x 750 HP DIESEL |
| TAHUN [Years] | : | 2025 |
| MATERIAL |
| 1 | Bottom Plate – 8 mm – Aluminium Marine 5083 H116 |
| 2 | Side Plate – 6 mm – Aluminium Marine 5083 H116 |
| 3 | Deck Plate – 4 mm – Aluminium Marine 5083 H116 |
| 4 | Cabin Plate – 4 mm – Aluminium Marine 5083 H116 |
| A | PERLENGKAPAN DECK |
| 1 | Railing atas ss.304 dia 1.25″ | 1 | Set |
| 2 | Tiang Bendera | 1 | Bh |
| 3 | Hatch Belakang | 3 | Bh |
| 4 | Hatch Lubang Jangkar | 1 | Bh |
| B | PERLENGKAPAN TAMBAT & LABUH |
| 1 | Cleat Pengikat Tali Jangkar | 1 | Bh |
| 2 | Cleat Pengikat Tali Tambat | 4 | Bh |
| 3 | Dampra F6 | 4 | Bh |
| 4 | Jangkar Besi 30 Kg | 1 | Bh |
| 5 | Winch jangkar | 1 | Bh |
| 6 | Tali 20 mm – 220 meter | 1 | Roll |
| C | INTERIOR & EXTERIOR |
| 1 | Kursi pilot | 1 | Bh |
| 2 | Kursi Navigator | 1 | Bh |
| 3 | Kursi Penumpang Recleaning | 164 | Bh |
| 3 | Toilet ( Manual Marine Toilet + Shower ) | 2 | Set |
| 4 | Kaca Depan Tempered 5 mm | 1 | Set |
| 5 | Kaca Samping Sliding samping | 2 | Set |
| 6 | Lining / Dinding | 1 | Lot |
| 7 | Ceiling / Plafon | 1 | Lot |
| 8 | Tangga Samping Naik Ke atap cabin | 1 | Bh |
| 9 | Pintu Entry Cabin [ Kanan – Kiri – Belakang ] | 3 | Bh |
| 10 | Tangga depan | 1 | Bh |
| D | SYSTEM PIPA DAN POMPA |
| 1 | Sistem Pengisian dan Distribusi BBm | 1 | Set |
| 2 | Sistem Pengisian dan Distribusi Air | 1 | Set |
| 3 | Sistem Pipa Toilet | 1 | Set |
| E | LAMPU NAVIGASI DAN PENERANGAN |
| 1 | Lampu Cabin | 10 | Set |
| 2 | Lampu Toilet | 2 | Set |
| 3 | Lampu Deck Belakang | 2 | Set |
| 4 | Lampu Sorot Depan | 1 | Set |
| 5 | Lampu Navigasi Merah Hijau , Putih | 1 | Set |
| F | KELISTRIKAN |
| 1 | Wiring System | 1 | Lot |
| 2 | Switch Panel | 2 | Bh |
| 3 | Battere Switch | 2 | Bh |
| 4 | Horn Trumpet | 1 | Bh |
| 5 | Battere / Accu 200 Amp | 4 | Bh |
| 6 | Genset 40 KVA Isuzu | 1 | Bh |
| |
| G | ALAT KOMUNIKASI & NAVIGASI |
| 1 | GPS GARMIN ECHO MAP 92SV + SOUNDER | 1 | Set |
| 2 | Radio VHF ICOM M200/M220 + Antenna | 1 | Set |
| 3 | Kompas 3″ | 1 | Bh |
| H | TANK |
| 1 | Tanki BBM Cap.15000 Ltr Aluminium 4 mm | 1 | Set |
| 2 | Tangki Air 1200 Ltr | 1 | Set |
| I | STEERING SYSTEM [ SISTEM KEMUDI ] |
| 1 | Steering System | 1 | Set |
| 2 | Racor | 4 | Bh |
| J | ALAT KESELAMATAN [SAFETY & APPARATUS] |
| 1 | Life Jacket | 180 | Bh |
| 2 | Ring Buoy | 4 | Bh |
| 3 | Tabung Pemadam 5 Kg | 6 | Bh |
| 4 | Red Hand Flare | 4 | Bh |
| 5 | Smoke Signal | 4 | Bh |
| 6 | Sprinkel Pemadam | 1 | Set |
| TERM & CONDITION | | TERM OF PAYMENT |
| 1 | Harga Validasi 30 hari | 1 | 20% | DP |
| 2 | Harga Franco Galangan | 2 | 20% | Part Hull Siap Rakit |
| 3 | Harga Termasuk Bea Klasifikasi | 3 | 25% | Start Building Cabin |
| 4 | Harga belum termasuk pajak | 4 | 25 % | Start Install Equipment |
| 5 | Harga diluar surat kapal | 5 | 10% | Finish before delivery |
| BUILDING TIME : 11 Bulan [ Months ] |
| WARRANTY : 1 Tahun – Body Only – Not Humman Error |
| HARGA KAPAL PENUMPANG ALUMINIUM 164 ORANG |
| BODY + AKSESORIS – TANPA MESIN |
| WA : 081333337303 |
| HARGA KAPAL PENUMPANG ALUMINIUM 164 ORANG |
| BODY + AKSESORIS + 3 ENGINE VOLVO/CUMMINS 750 HP + WATERJET |
| WA : 081333337303 |
| HARGA KAPAL PENUMPANG ALUMINIUM 164 ORANG |
| BODY + AKSESORIS + 3 ENGINE WEICHAI 750 HP + WATERJET |
| WA : 081333337303 |
